Product description
General information
The Supreme MIL AUX headset provides high noise reduction yet with a slim design.
Key features
- Slim cups to fit both left hand and right hand shooters
- Available as a foldable headband, helmet mounted, slim headband and neckband versions
- Easy-to-use push buttons operate the electronic functions
- Level-dependent function that allow you to hear ambient sound like warning signals, moving vehicles and important information and still be protected from hazardous noise
- High amplification and natural sound reproduction without chopping and cutting out
- Water proof microphones (IP67 tested)
- The electronic circuits are encapsulated in multiple layers of lacquer and polymer for increased robustness
- Amplification of low sounds
- Very natural sound reproduction through the speakers inside the cups
- Two loudspeakers in each cup, one for surround hearing and one for radio/communication – radio/ communication works even when batteries are out
- Sound reproduced through the level-dependent function is limited to a maximum of 82 dB
- Battery save function, low battery warning (40), auto shutdown (4h), battery life 600h
- Automatic switch-off after 4 hours if no button is activated saves battery life
- Audio input (AUX) for connecting external audio sources, such as communication radios
- Low battery warning when approximately 40 hours is left of the battery life
- Applicable tests made in accordance with MIL standards MIL-STD-810g and EMC-MIL-STD-461G.
- Additional RFI protection.

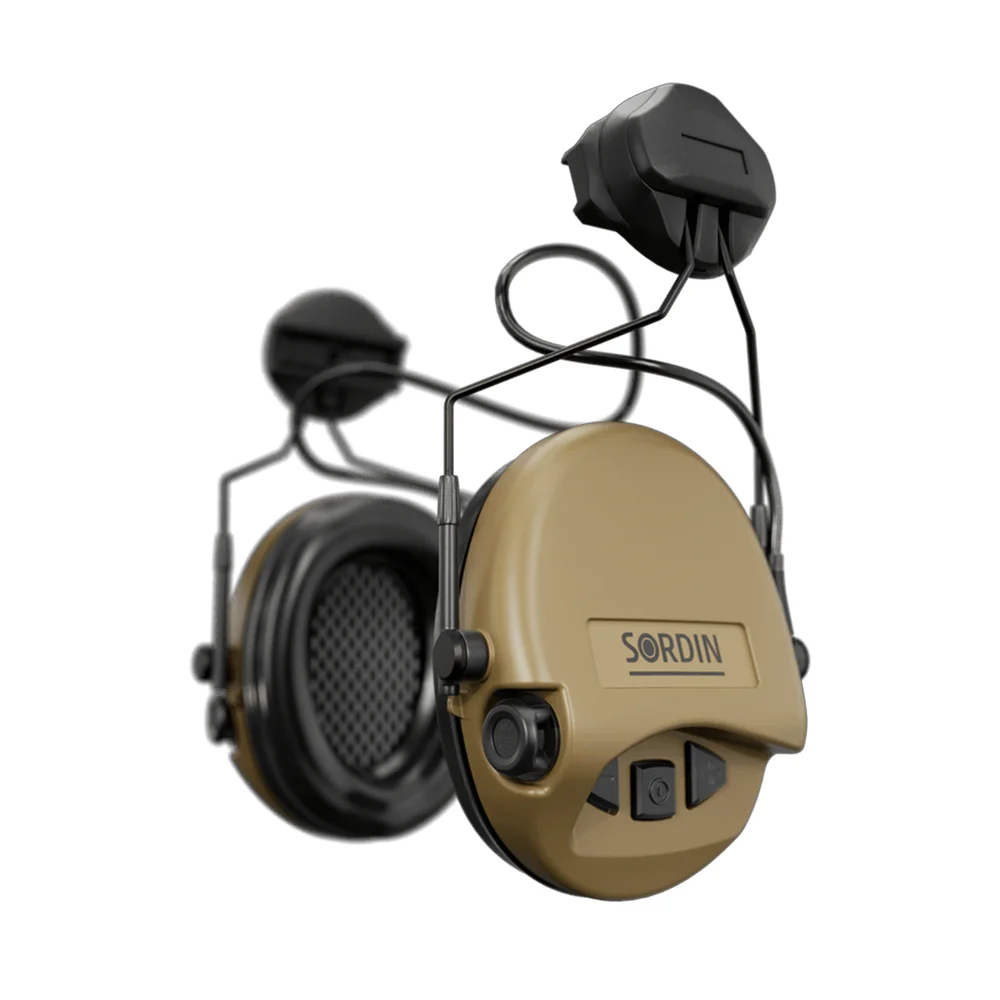

Helmet mounting
ARC rails
MIL standards
Sordin is in the process of extending test procedures according to MIL-STD-810H (Environmental Engineering Considerations and Laboratory Tests), and MIL-STD-461G (Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment).
Technical information
- Batteries: 2 x 1.5 V AAA/LR03, estimated operating time is around 600 hours
- Level-dependent microphone frequency response: 100 Hz – 10 KHz
- Loudspeakers / loudspeaker response: 2 x 32 Ohm / 20 Hz – 20 KHz
- Operating conditions: – 20°C – + 50°C
- Max audio signal allowed from the connected radio to not exceed 82 dB(A) through the speakers: 399 mVrms
- Weight headband version (excluding batteries): 330 gram
- Weight headband version (including batteries): 375 gram
- Complies with following environmental directives: RoHS, WEEE
